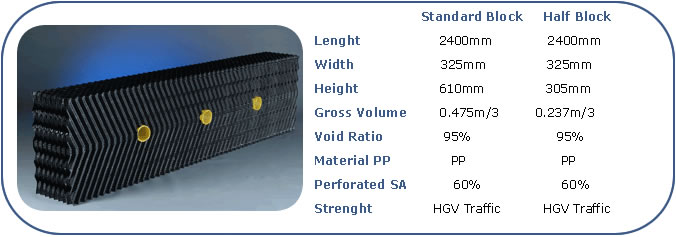

HydroCell:<< Back to JFC Civils| The HydroCell system is a polypropylene modular block with a 95% void ratio. The blocks are assembled together to form an underground storage tank for stormwater run off. It can be used under both HGV traffic and car park traffic areas as well as non trafficked amenity areas. HydroCell blocks can be used in three different types of stormwater management systems. |
 |
||||
| 1) Infiltration System 2) Permeable Attenuation System 3) Impermeable |
|||||
 |
Inspection and Maintainence Stormwater firstly enters the catch pit manhole where all heavy silt / grit and floatables are trapped, it then enters the inspection manhole which is connected to the HydroCell blocks with a suitable diameter pipe for inspection and maintenance. The distribution pipe is solid outside the tank and perforated inside the tank for lateral flow. The stormwater leaves the system through infiltration and / or the Hydro-Valve vortex flow control device depending on the type of system being installed. |
| Features and Benefits Lightweight Rigid Design Modular Construction Fast Installation Various Strengths Available |
Silt Management Cost Effective Technical Assistance On-Site Consultation |
 |
 |
| Downloads: | |||
Stormwater Management Brochure
|
|||
HydroCell Technical Specification
|
|||
| HydroCell BBA Certificate
|
|||
