Hydro-Valve Vortex Flow ControlHydro-Valve Vortex Flow Control:Hydro-Valve Vortex Flow Control<< Back to JFC Civils


  Hydro-Valve Storm Water Flow Control

HydroChamber The Hydro-Valve is a vortex flow control device for controlling stormwater flow to a specific rate before discharge into a local storm drain or water course. Sizes are available between 1 –200 l/s depending on specification.

Design

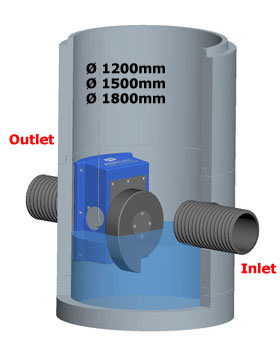

Hydro-Valve Vortex Flow Control JFC Hydro-Valves are manufactured to customer specifications and are custom designed to achieve a specified design flow rate at a given head height. The units are designed to fit into one of the following manhole types depending on specification.

• Ø1200mm
• Ø1500mm
• Ø1800mm
• Rectangular Manhole



HydroChamberHydro-Valve Vortex Flow Control


  Features and Benefits

Hydro-Valve Vortex Flow Control Customised Specification
Hydro-Valve Vortex Flow Control 3-6 Times Greater Orifice CSA
Hydro-Valve Vortex Flow Control Self Cleansing
Hydro-Valve Vortex Flow Control Manual By-Pass


Hydro-Valve Vortex Flow Control Easy Installation
Hydro-Valve Vortex Flow Controlr Self Activating
Hydro-Valve Vortex Flow Control Hydraulic Data Available
  JFC Hydro-Valve

Installation

Hydro-Valve Vortex Flow Control JFC Hydro-Valves unique patented design allows for quick and easy installation onto various types of manholes (see above). The unit is fixed to the inside wall of the manhole with a number of steel stud anchors. A manual by-pass is also incorporated in the valve for remote operation in the unlikely event of a blockage.
Quality Assurance

Hydro-Valve Vortex Flow Control JFC Hydro-Valves are manufactured to ISO 9001:2000
quality assurance system.

  Operation

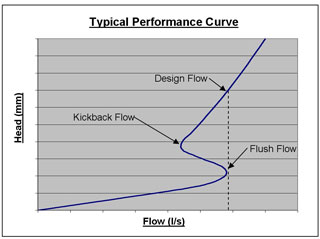

Hydro-Valve Vortex Flow Control The HYDRO-VALVE is a device for controlling stormwater flow by hydraulic effect without requiring moving parts. At low flow rates, water entering through the inlet passes through the vortex chamber to the outlet with no restriction. As flow rate increases water enters through the inlet with enough energy to create a vortex in the vortex chamber which results in a considerable pressure drop between the inlet and the outlet restricting the flow to the allowable discharge.

Hydro-Valve Vortex Flow Control The Hydro-Valve therefore operates automatically with no
moving parts and no external power source. A typical application of this valve is to control the flow from storm water attenuation tanks preventing downstream flooding during periods of heavy rainfall.



  JFC Hydro-Valve

JFC Hydro-Valve

  Downloads:

Hydro-Valve Vortex Flow Control Stormwater Management BrochureJFC Corripipe JFC Stormwater

  Hydro-Valve Vortex Flow Control Hydro-Valve Technical SpecificationJFC Corripipe JFC HydroValve
  Hydro-Valve Vortex Flow Control Hydro-Valve Installation ManualJFC Corripipe JFC HydroValve
  Hydro-Valve Vortex Flow Control Hydro-Valve AutoCad SectionJFC Corripipe JFC HydroValve


Hydro-Valve Vortex Flow Control<< Back to JFC Civils
